DPM Systems Technologies Recoil System Sig P210 Legend-Target-Super Target
DPM Mechanical Recoil Reduction System for SIG P210 Legend - Target-Super Target -12 Adjustable Settings
The system works due to the multi spring intricate rod (3 springs) and controls the functionality of the pistol. The third spring which is contained within the rod controls the movement of the slide so it never rams on the frame.

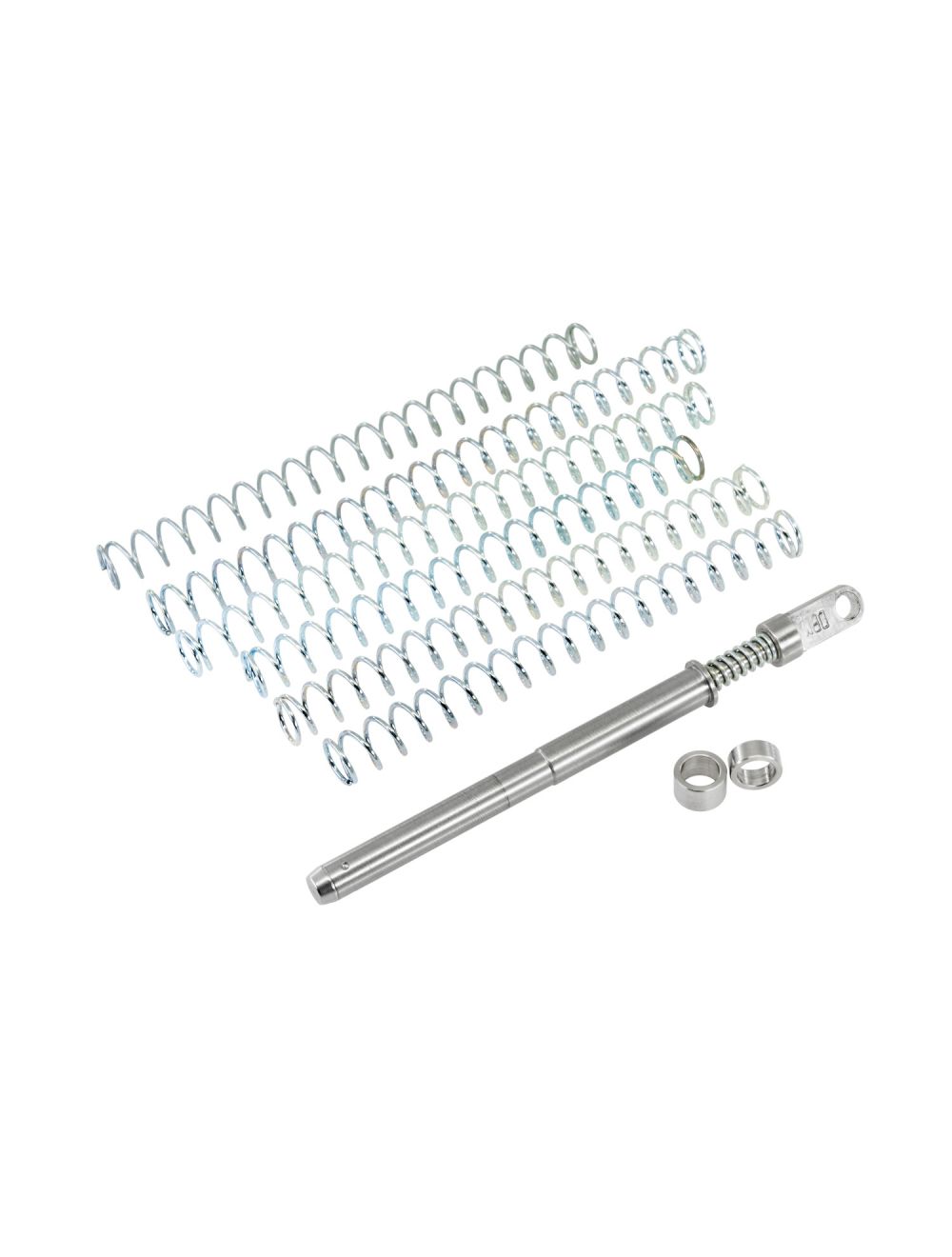

The system includes 2 different spring plugs and 6 different external springs.
The Dark Grey spring plug is offering a heavier buffer effect and the Silver spring plug offers a lighter buffer effect in slide full open position.
The external springs are coming in 2 sets of 3 springs, 1 set of 0.95mm wire diameter (optional reccomendation for low power ammo) and 1 set of 1.0mm wire diameter (for standard and heavier ammo).
Power Rates
Slide on the battery (idle position)
External Springs 0.95mm
Short: 6lbs
Medium: 7lbs
Long: 8lbs
External Springs 1.0mm
Short: 8lbs
Medium: 9lbs
Long: 10lbs
Slide Full Open Position - Total Force
Short Plug: 16lbs
Long Plug: 20lbs
The spring plug must always be installed when the DPM Recoil Rod and springs are used.
